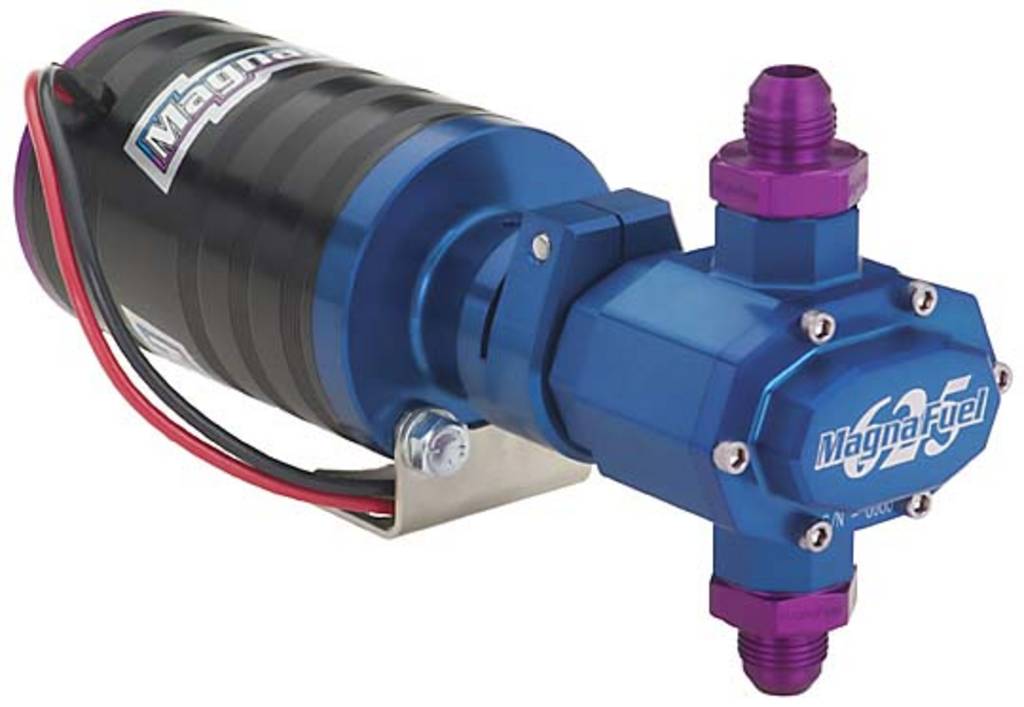

MAGNAFUEL ProTuner In-line EFI Pumps
Ideal for street muscle cars
Quiet operation
Self priming
Continuousduty
No pump shaft seals, no leaks
Pump body CNC machined aircraft aluminum
High-torque custom motor with very low current draw. Never requires stepdown
More efficient than other motors
Double support bearings
Rebuildable to as-new condition
Compact design fits in smaller spaces
Smaller than competitive pumps, lower current draw, more powerful
Hard anodized, long lasting finish
Mounting bracket included
Vertical or horizontal mount
Polymer wear plates for smooth, quiet operation
All ProTuner Pumps have a -8 inlet and outlet
Ratings:
ProTuner 525 rated at 1000+ HP*
ProTuner 625 rated at 1500+ HP*
ProTuner 750 rated at 2000+ HP*
*all horsepower estimates based upon naturally aspirated combinations

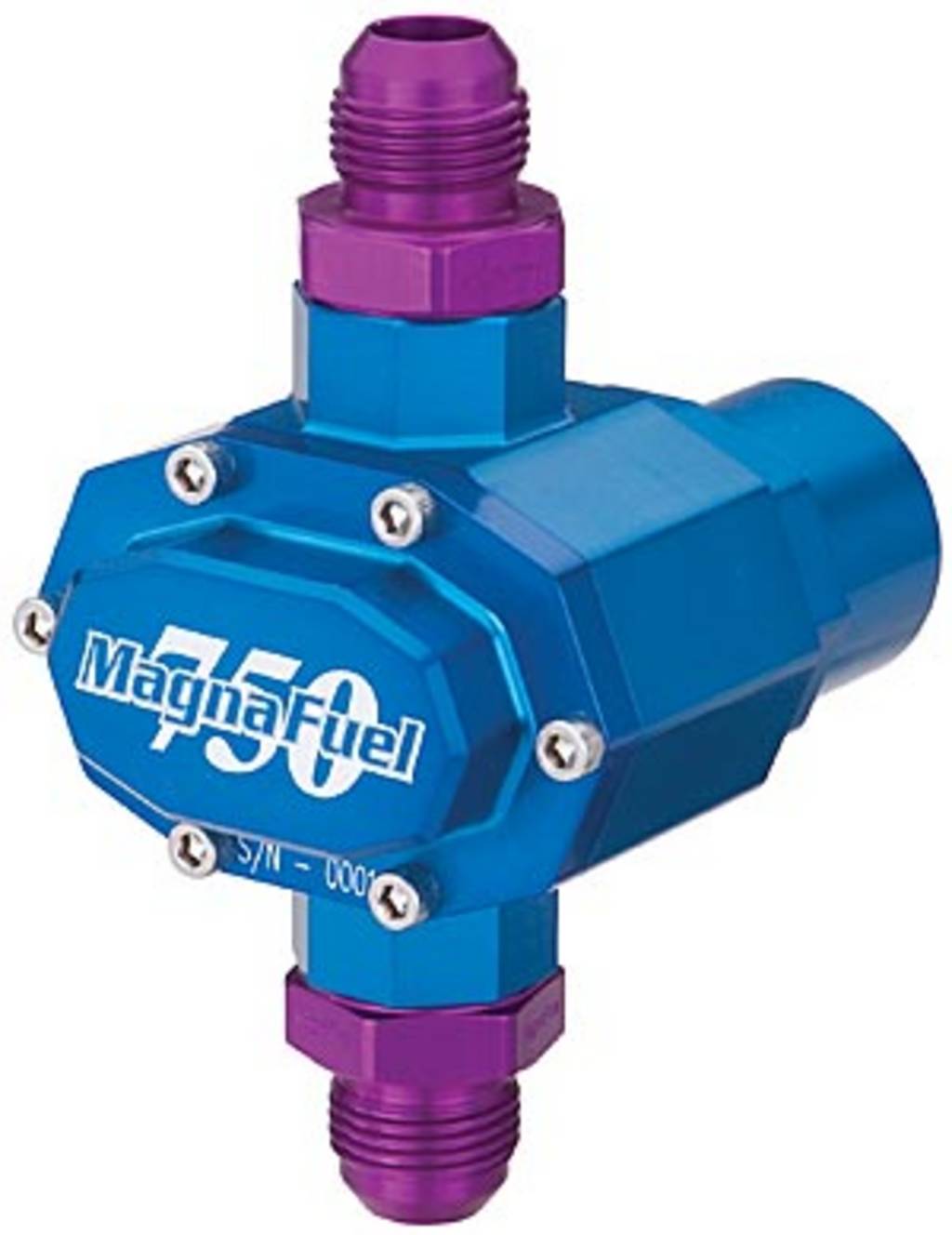

MAGANFUEL Outlaw Belt Drive Pumps
Tighter tolerances for easy priming, quick and reliable starts
Flow rates up to 10.5 gpm at 100psi for engines with high-volume fuel demands, such as alcohol
Compact, ultralight design
Standard 3/8″ Hex drive for use with existing devices (belt or cam)
High-performance gear pump is more durable and requires less maintenance than other designs
CNC machined body, with hard-anodized finish is compatible with gas, methanol and ethanol
Double-support bearings, groundsteel shafts, precision lapped
Polymer wear plates provide tighter tolerances and last longer than other surfaces
Field serviceable with available rebuild kits
Absolutely eliminates fuel starvation
Increases fuel volume delivery as engine RPM increases
Each pump is flow tested to ensure optimum performance and shipped ready-to-run
Requires bypassing regulator for EFI applications
Bracket and cog pulley not included

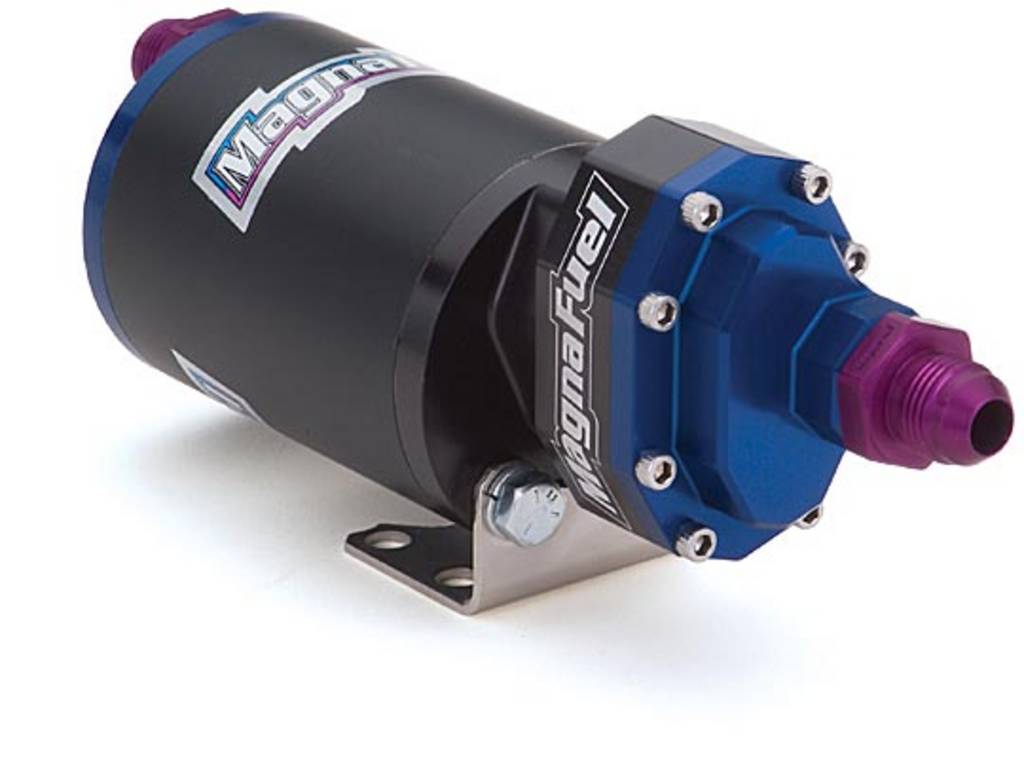

MAGNAFUEL ProStar Series EFI Pumps
Swivel pump head allows more mounting freedom
First electric motor gear pump to supply 2,500+ HP
Provides highest volume at highest pressure… Period
Great performance for the high volume and pressure demands of supercharged and turbo-charged applications
Never requires voltage reduction devices due to high quality motor construction
Powered by the same motor as the race proven MagnaFuel ProStar 500
Compatible with alcohol and gasoline racing fuels
Hand assembled to the highest quality standards
Pump bodies computer machined out of high quality 6061-T6 Billet Aluminum
Flow tested to ensure maximum performance
All MagnaFuel pumps are totally rebuildable to As New factory specifications
Polymer wear plates for smooth, quiet operation
All ProStar SQ Pumps have a -10 inlet and outlet
Fittings NOT Included
Ratings:
ProStar SQ 525 rated at 1500+ HP*
ProStar SQ 625 rated at 2000+ HP*
ProStar SQ 750 rated at 2500+ HP*
*all horsepower estimates based upon naturally aspirated combinations

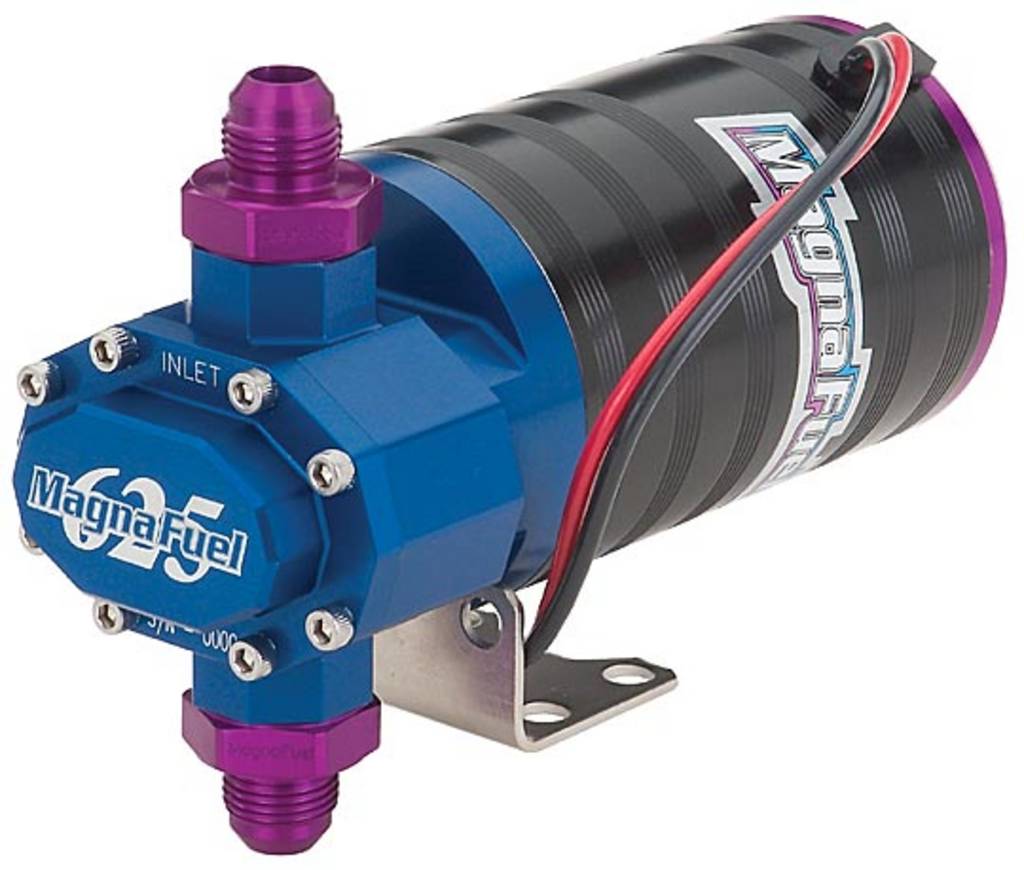

MAGNAFUEL Pro Star SQ Series EFI Pump
Compact design fits in smaller spaces
First electric motor gear pump to supply 2,500+ HP
Provides highest volume at highest pressure… Period
Great performance for the high volume and pressure demands of supercharged and turbo-charged applications
Never requires voltage reduction devices due to high quality motor construction
Powered by the same motor as the race proven MagnaFuel ProStar 500
Compatible with alcohol and gasoline racing fuels
Hand assembled to the highest quality standards
Pump bodies computer machined out of high quality 6061-T6 Billet Aluminum
Flow tested to ensure maximum performance
All MagnaFuel pumps are totally rebuildable to As New factory specifications
Polymer wear plates for smooth, quiet operation

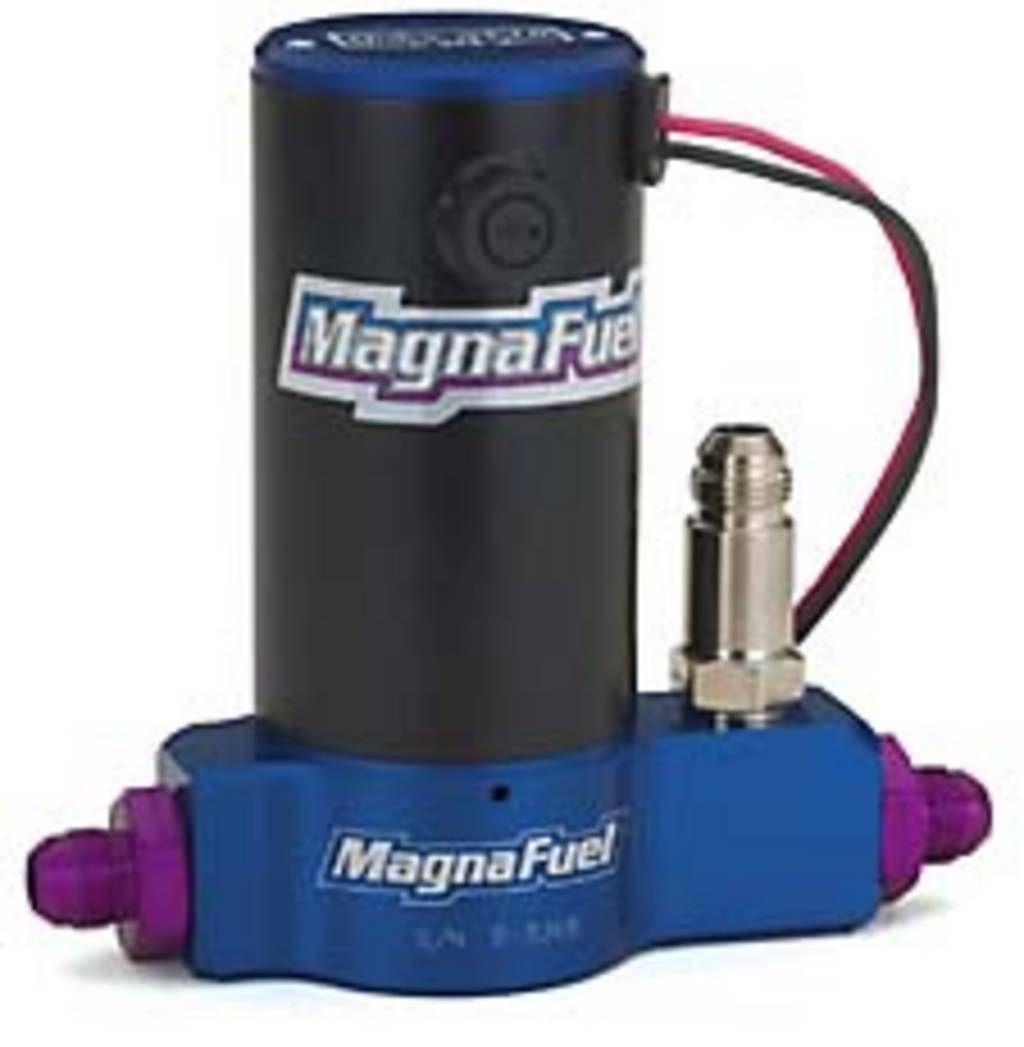

MAGNAFUEL QuickStar 275
A pump that provides the same quality and precision as the ProStar pump.
MAGNAFUEL QuickStar 300
For the requirements of turbo, supercharged or nitrous assist systems, where the high volume of the ProStar is not required
MAGNAFUEL ProStar 500
High performance when rated at flow vs. pressure
External by-pass to eliminate pump cavitations
Instantaneous compensation for sudden changes in fuel demand
Consistent, reliable fuel supply for optimum carburetor performance
Compatible with both alcohol and gasoline racing fuels
Light weight
Hand assembled to the highest quality standard
Pump bodies computer machined out of high quality 6061 Aluminum
Custom built low amperage motors the best in the industry
Compatible with 12- and 16-V electrical systems
No metal to metal contact for reduced wear and greater reliability
Blades self-compensating for wear
Flow tested to ensure maximum performance
All MagnaFuel pumps are rebuildable to as-new factory specifications

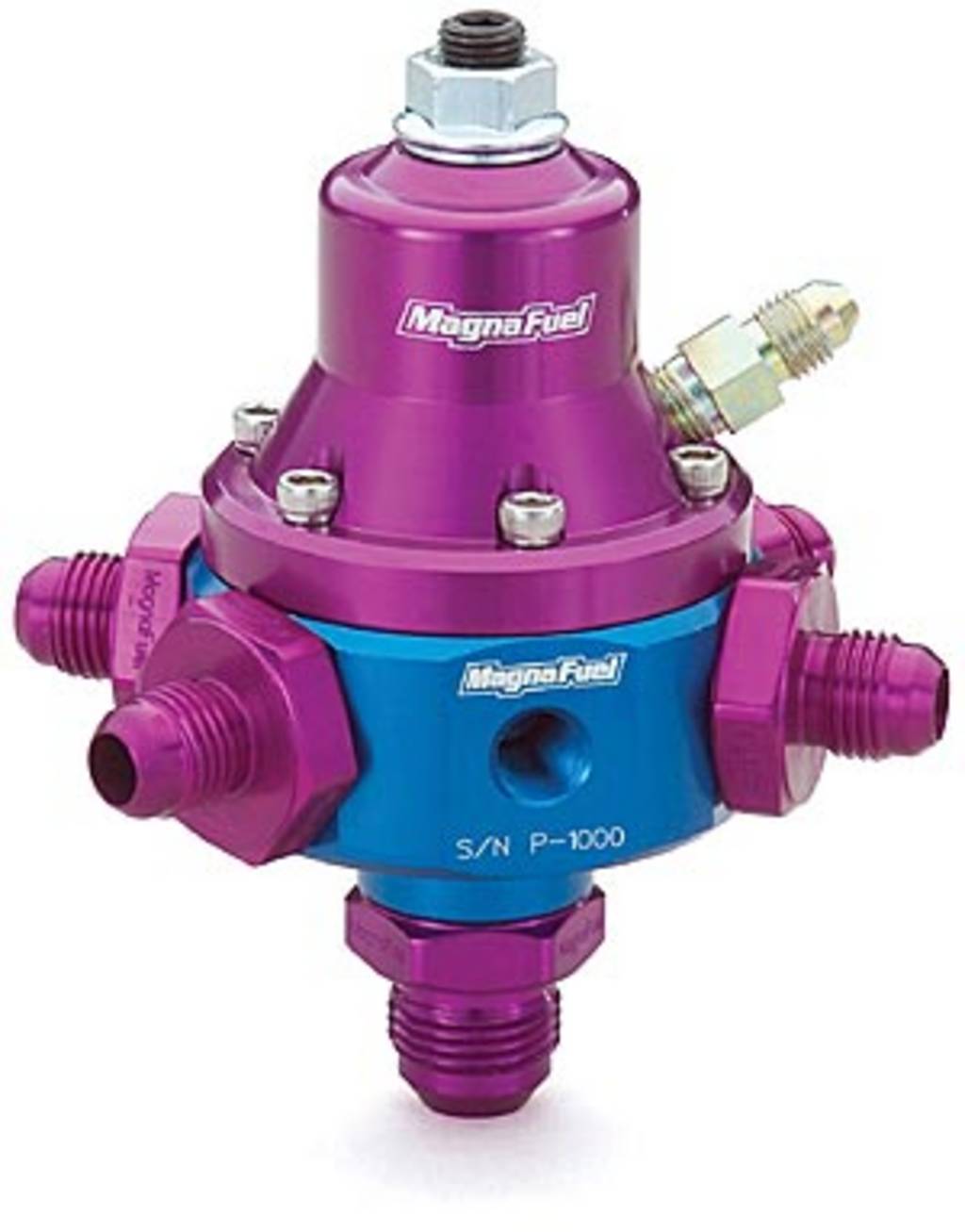

Magnafuel EFI Regulators
Unique guided-metering valve assembly provides accurate metering of fuel flow
Magnafuel EFI Regulators provide the most stable platform for fuel delivery in the performance industry
Maintains steady fuel fuel flow during times of sudden changes in fuel demands, such as initial launch, gear change and nitrous oxide application
Designed for use with the MagnaFuel EFI gear pumps
Regulators available in two different body sizes and different spring combinations to suit your fuel flow at pressure specifications
Each Regulator has 1/8″ NPT gauge port, standard filtered vent fitting or boost reference fitting (1:1 compensation ratio)
Special fittings and adapters available for most applications
All MagnaFuel Regulators are hand assembled to the highest quality
MagnaFuel Regulators are compatible with racing gasoline and alcohol fuels
Billet body precision CNC-machined from aircraft-quality aliminum and hard anodized for extra long service life
Completely user-serviceable, with ready to order replacements parts.
